Specifications for Logan Lathes

Click on a highlighted Model Number to order the correct Parts List/Instruction Manual for that Model

Model
Q.C. Gear Box
Center Distance
Bed Length
Spindle Nose
Spindle Bore
Tailstock/
Turret
Drive Belt
Stand
Comments
Approx Shipping Weight
(Lbs)

9" Swing
W 2129 No 18   1-1/2"-8 x #3 M.T. 25/32 Std Tailstock V-Belt Bench Model 400
400 No 18   1-1/2"-8 x #3 M.T. 25/32 Std Tailstock V-Belt Bench   240
1400 No 18   1-1/2"-8 x #3 M.T. 25/32 Std Tailstock V-Belt Bench
9B-17-1 Yes 17 33 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock V-Belt Bench   285
9B-17-21 Yes 17 33 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock V-Belt Bench   275
9B-17-41 No 17 33 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock V-Belt Bench   275
9B-17-61 No 17 33 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock V-Belt Bench   265
9B-28-1 Yes 28 44 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock V-Belt Bench   310
9B-28-21 Yes 28 44 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock V-Belt Bench   300
9B-28-41 No 28 44 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock V-Belt Bench   300
9B-28-61 No 28 44 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock V-Belt Bench   290

Model
Q.C. Gear Box
Center Distance
Bed Length
Spindle Nose
Spindle Bore
Tailstock/
Turret
Drive Belt
Stand
Comments


10" Swing


W  699 No 24 43 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock Flat Belt Bench "Wards Lathe"
W  700 No 24 43 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock Flat Belt Bench "Wards Lathe"
W  701 No 24 43 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock Flat Belt Bench "Wards Lathe"
W 2130 No 24 43 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock Flat Belt Bench "Wards Lathe"
W 2131 No   43 1-1/2"-8 x #3 M.T. 25/32 Lever Turret Flat Belt Legs Model 830
W 2132 No   43 1-1/2"-8 x #3 M.T. 25/32 Lever Turret Flat Belt Legs Model 850
W 2134 Yes 24 43 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock Flat Belt Cabinet Model 825
W 2135 Yes 24 43 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock Flat Belt Legs Model 820
W 2136 No 31 50 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock Flat Belt Bench "Wards Lathe"
W 2138 Yes 24 43 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock Flat Belt Bench Added Gearbox
W 2139 Yes 31 50 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock Flat Belt Bench Added Gearbox
W 2217 Yes 31 50 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock Flat Belt Legs Model 821
W 2218 Yes 24 43 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock Flat Belt Bench Model 815
W 2219 Yes 31 50 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock Flat Belt Bench Model 816
W 2232 No 24 43 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock Flat Belt Bench Model 210
W 2233 No 31 50 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock Flat Belt Bench Model 211
W 2234 No 24 43 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock Flat Belt Legs Model 200
W 2235 No 31 50 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock Flat Belt Legs Model 201
200 No 24 43 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock Flat Belt Legs   520
200-1 No 24 43 1-1/2"-8 x #3 M.T. 25/32 Lever Tailstock Flat Belt Legs
201 No 31 50 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock Flat Belt Legs
210 No 24 43 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock Flat Belt Bench   400
210-1 No 24 43 1-1/2"-8 x #3 M.T. 25/32 Lever Tailstock Flat Belt Bench
211 No 31 50 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock Flat Belt Bench   437
815 Yes 24 43 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock Flat Belt Bench   440
815-1 Yes 24 43 1-1/2"-8 x #3 M.T. 25/32 Lever Tailstock Flat Belt Bench
816 Yes 31 50 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock Flat Belt Bench   475
820 Yes 24 43 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock Flat Belt Legs   530
820-1 Yes 24 43 1-1/2"-8 x #3 M.T. 25/32 Lever Tailstock Flat Belt Legs
821 Yes 31 50 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock Flat Belt Legs   565
825 Yes 24 43 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock Flat Belt Cabinet   830
825-1 Yes 24 43 1-1/2"-8 x #3 M.T. 25/32 Lever Tailstock Flat Belt Cabinet
830 No   43 1-1/2"-8 x #3 M.T. 25/32 Lever Turret Flat Belt Legs   475
830-2 No   43 1-1/2"-8 x #3 M.T. 25/32 Wheel Turret Flat Belt Legs   550
840 Yes   43 1-1/2"-8 x #3 M.T. 25/32 Lever Turret Flat Belt Legs   595
840-2 Yes   43 1-1/2"-8 x #3 M.T. 25/32 Wheel Turret Flat Belt Legs   610
845 Yes   43 1-1/2"-8 x #3 M.T. 25/32 Lever Turret Flat Belt Cabinet
845-2 Yes   43 1-1/2"-8 x #3 M.T. 25/32 Wheel Turret Flat Belt Cabinet   880
850 No   43 1-1/2"-8 x #3 M.T. 25/32 Lever Turret Flat Belt Legs   535
850-2 No   43 1-1/2"-8 x #3 M.T. 25/32 Wheel Turret Flat Belt Legs   580
1805 No 24 43 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock V-Belt Bench
1806 No 31 50 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock V-Belt Bench
1810 No 24 43 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock V-Belt Legs
1811 No 31 50 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock V-Belt Legs
1815 Yes 24 43 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock V-Belt Bench
1816 Yes 31 50 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock V-Belt Bench
1820 Yes 24 43 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock V-Belt Legs
1821 Yes 31 50 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock V-Belt Legs
1825 Yes 24 43 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock V-Belt Cabinet   790
1830 No   43 1-1/2"-8 x #3 M.T. 25/32 Lever Turret V-Belt Legs
1830-2 No   43 1-1/2"-8 x #3 M.T. 25/32 Wheel Turret V-Belt Legs
1835 Yes   43 1-1/2"-8 x #3 M.T. 25/32 Lever Turret V-Belt Pedestal
1835-2 Yes   43 1-1/2"-8 x #3 M.T. 25/32 Wheel Turret V-Belt Pedestal   830
1840 Yes   43 1-1/2"-8 x #3 M.T. 25/32 Lever Turret V-Belt Legs
1840-2 Yes   43 1-1/2"-8 x #3 M.T. 25/32 Wheel Turret V-Belt Legs
1845 Yes   43 1-1/2"-8 x #3 M.T. 25/32 Lever Turret V-Belt Cabinet
1845-2 Yes   43 1-1/2"-8 x #3 M.T. 25/32 Wheel Turret V-Belt Cabinet   855
1850 No   43 1-1/2"-8 x #3 M.T. 25/32 Lever Turret V-Belt Legs
1850-2 No   43 1-1/2"-8 x #3 M.T. 25/32 Wheel Turret V-Belt Legs
1875 Yes 24 43 1-1/2"-8 x #3 M.T. 25/32 Std Tailstock V-Belt Pedestal   765

Model
Q.C. Gear Box
Center Distance
Bed Length
Spindle Nose
Spindle Bore
Tailstock/
Turret
Drive Belt
Stand
Comments


11" Swing


905 No 24 43 2-1/4"-8 1-3/8 Std Tailstock Flat Belt Bench
907 No 36 55 2-1/4"-8 1-3/8 Std Tailstock Flat Belt Bench
910 No 24 43 2-1/4"-8 1-3/8 Std Tailstock Flat Belt Legs
912 No 36 55 2-1/4"-8 1-3/8 Std Tailstock Flat Belt Legs
915 Yes 24 43 2-1/4"-8 1-3/8 Std Tailstock Flat Belt Bench
917 Yes 36 55 2-1/4"-8 1-3/8 Std Tailstock Flat Belt Bench
920 Yes 24 43 2-1/4"-8 1-3/8 Std Tailstock Flat Belt Legs
922 Yes 36 55 2-1/4"-8 1-3/8 Std Tailstock Flat Belt Legs
925 Yes 24 43 2-1/4"-8 1-3/8 Std Tailstock Flat Belt Cabinet
927 Yes 36 55 2-1/4"-8 1-3/8 Std Tailstock Flat Belt Cabinet
935 Yes   43 2-1/4"-8 1-3/8 Lever Turret Flat Belt Pedestal
935-2 Yes   43 2-1/4"-8 1-3/8 Wheel Turret Flat Belt Pedestal
940 Yes   43 2-1/4"-8 1-3/8 Lever Turret Flat Belt Legs
940-2 Yes   43 2-1/4"-8 1-3/8 Wheel Turret Flat Belt Legs
945 Yes   43 2-1/4"-8 1-3/8 Lever Turret Flat Belt Cabinet
945-2 Yes   43 2-1/4"-8 1-3/8 Wheel Turret Flat Belt Cabinet
950 No   43 2-1/4"-8 1-3/8 Lever Turret Flat Belt Legs
950-2 No   43 2-1/4"-8 1-3/8 Wheel Turret Flat Belt Legs
955 Yes 24 43 2-1/4"-8 1-3/8 Std Tailstock Flat Belt Pedestal
957 Yes 36 55 2-1/4"-8 1-3/8 Std Tailstock Flat Belt Pedestal
1915 Yes 24 43 2-1/4"-8 1-3/8 Std Tailstock V-Belt Bench
1917 Yes 36 55 2-1/4"-8 1-3/8 Std Tailstock V-Belt Bench
1920 Yes 24 43 2-1/4"-8 1-3/8 Std Tailstock V-Belt Legs
1922 Yes 36 55 2-1/4"-8 1-3/8 Std Tailstock V-Belt Legs
1925 Yes 24 43 2-1/4"-8 1-3/8 Std Tailstock V-Belt Cabinet   870
1927 Yes 36 55 2-1/4"-8 1-3/8 Std Tailstock V-Belt Cabinet   915
1935 Yes   43 2-1/4"-8 1-3/8 Lever Turret V-Belt Pedestal
1935-2 Yes   43 2-1/4"-8 1-3/8 Wheel Turret V-Belt Pedestal   905
1937 Yes   55 2-1/4"-8 1-3/8 Lever Turret V-Belt Pedestal
1937-2 Yes   55 2-1/4"-8 1-3/8 Wheel Turret V-Belt Pedestal   955
1940 Yes   43 2-1/4"-8 1-3/8 Lever Turret V-Belt Legs
1940-2 Yes   43 2-1/4"-8 1-3/8 Wheel Turret V-Belt Legs
1942 Yes   55 2-1/4"-8 1-3/8 Lever Turret V-Belt Legs
1942-2 Yes   55 2-1/4"-8 1-3/8 Wheel Turret V-Belt Legs
1945 Yes   43 2-1/4"-8 1-3/8 Lever Turret V-Belt Cabinet
1945-2 Yes   43 2-1/4"-8 1-3/8 Wheel Turret V-Belt Cabinet   930
1947 Yes   55 2-1/4"-8 1-3/8 Lever Turret V-Belt Cabinet
1947-2 Yes   55 2-1/4"-8 1-3/8 Wheel Turret V-Belt Cabinet   980
1955 Yes 24 43 2-1/4"-8 1-3/8 Std Tailstock V-Belt Pedestal   840
1957 Yes 36 55 2-1/4"-8 1-3/8 Std Tailstock V-Belt Pedestal   890
1975 Yes 22 43 L-00 1-3/8 Std Tailstock V-Belt Pedestal   850
1977 Yes 34 55 L-00 1-3/8 Std Tailstock V-Belt Pedestal   900
1985 Yes 22 43 L-00 1-3/8 Std Tailstock V-Belt Cabinet   880
1987 Yes 34 55 L-00 1-3/8 Std Tailstock V-Belt Cabinet   925
1110007 Yes 35 55 2-1/4"-8 1-3/8 Std Tailstock Var. Speed Cabinet Powermatic 900
1110008 Yes 35 55 L-00 1-3/8 Std Tailstock Var. Speed Cabinet Powermatic 900
1111011 Yes   55 L-00 1-3/8 Wheel Turret Var. Speed Cabinet Powermatic 960

Model
Q.C. Gear Box
Center Distance
Bed Length
Spindle Nose
Spindle Bore
Tailstock/
Turret
Drive Belt
Stand
Comments


12" Swing


2525-V Yes 23 43 2-1/4"-8 1-3/8 Std Tailstock Var. Speed Cabinet   1040
2527-V Yes 35 55 2-1/4"-8 1-3/8 Std Tailstock Var. Speed Cabinet   1090
2535 Yes   43 2-1/4"-8 1-3/8 Lever Turret V-Belt Pedestal
2535-2 Yes   43 2-1/4"-8 1-3/8 Wheel Turret V-Belt Pedestal
2535-2-V Yes   43 2-1/4"-8 1-3/8 Wheel Turret Var. Speed Pedestal   1180
2535-V Yes   43 2-1/4"-8 1-3/8 Lever Turret Var. Speed Pedestal
2537-2-V Yes   55 2-1/4"-8 1-3/8 Wheel Turret Var. Speed Pedestal   1240
2537-V Yes   55 2-1/4"-8 1-3/8 Lever Turret Var. Speed Pedestal
2545-2-V Yes   43 2-1/4"-8 1-3/8 Wheel Turret Var. Speed Cabinet   1200
2545-V Yes   43 2-1/4"-8 1-3/8 Lever Turret Var. Speed Cabinet
2547-2-V Yes   55 2-1/4"-8 1-3/8 Wheel Turret Var. Speed Cabinet   1250
2547-V Yes   55 2-1/4"-8 1-3/8 Lever Turret Var. Speed Cabinet
2555 Yes 23 43 2-1/4"-8 1-3/8 Std Tailstock V-Belt Pedestal
2555-V Yes 23 43 2-1/4"-8 1-3/8 Std Tailstock Var. Speed Pedestal   1015
2557 Yes 35 55 2-1/4"-8 1-3/8 Std Tailstock V-Belt Pedestal
2557-V Yes 35 55 2-1/4"-8 1-3/8 Std Tailstock Var. Speed Pedestal   1075
2935 Yes   55 2-1/4"-8 1-3/8 Lever Turret V-Belt Pedestal
2935-2 Yes   43 2-1/4"-8 1-3/8 Wheel Turret V-Belt Pedestal
2935-2-V Yes   43 2-1/4"-8 1-3/8 Wheel Turret Var. Speed Pedestal
2935-V Yes   55 2-1/4"-8 1-3/8 Lever Turret Var. Speed Pedestal
2955 Yes 23 43 2-1/4"-8 1-3/8 Std Tailstock V-Belt Pedestal
2955-V Yes 23 43 2-1/4"-8 1-3/8 Std Tailstock Var. Speed Pedestal
2957 Yes 35 55 2-1/4"-8 1-3/8 Std Tailstock V-Belt Pedestal
2957-V Yes 35 55 2-1/4"-8 1-3/8 Std Tailstock Var. Speed Pedestal
1120003 Yes 35 55 2-1/4"-8 1-3/8 Std Tailstock Var. Speed Pedestal Powermatic 1060
1120004 Yes 34 55 L-00 1-3/8 Std Tailstock Var. Speed Pedestal Powermatic 1060
1121007 Yes   55 L-00 1-3/8 Wheel Turret Var. Speed Pedestal Powermatic 1110

Model
Q.C. Gear Box
Center Distance
Bed Length
Spindle Nose
Spindle Bore
Tailstock/
Turret
Drive Belt
Stand
Comments


14" Swing


6510-H Yes 28 56 2-1/4"-8 1-3/8 Std Tailstock Var. Speed Pedestal   1625
6515 Yes 28 56 2-1/4"-8 1-3/8 Std Tailstock Var. Speed Pedestal Hardened Bed
6520-H Yes 28 56 L-00 1-3/8 Std Tailstock Var. Speed Pedestal   1625
6525 Yes 28 56 L-00 1-3/8 Std Tailstock Var. Speed Pedestal Hardened Bed

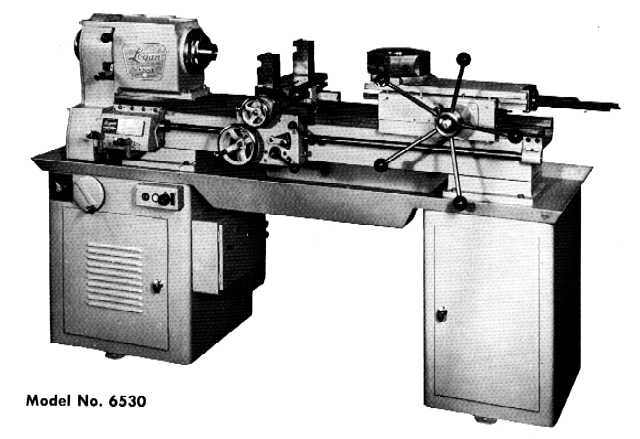

6530 Yes   68 L-0 1-5/8 Wheel Turret Var. Speed Cabinet   2200
6560-H Yes 40 68 2-1/4"-8 1-3/8 Std Tailstock Var. Speed Cabinet Hardened Bed 1850
6561-H Yes 40 68 L-00 1-3/8 Std Tailstock Var. Speed Cabinet Hardened Bed 1850
6565 Yes 40 68 L-0 1-5/8 Std Tailstock Var. Speed Cabinet   1950
7500 Yes   56 2-1/4"-8 1-3/8 Chucker Var. Speed Pedestal   2200
7500-L Yes   56 L-00 1-3/8 Chucker Var. Speed Pedestal
7502 Yes   56 2-1/4"-8 1-3/8 Chucker Var. Speed Pedestal
7502-L Yes   56 L-00 1-3/8 Chucker Var. Speed Pedestal
7510 D.C. Drive   56 2-1/4"-8 1-3/8 Chucker Var. Speed Pedestal
7510-L D.C. Drive   56 L-00 1-3/8 Chucker Var. Speed Pedestal
7515 D.C. Drive   56 2-1/4"-8 1-3/8 Chucker Var. Speed Pedestal
7515-L D.C. Drive   56 L-00 1-3/8 Chucker Var. Speed Pedestal
1140005 Yes 42 68 L-00 1-3/8 Std Tailstock Var. Speed Pedestal Powermatic 1820
1140010 Yes 42 68 D1-4 1-5/8 Std Tailstock Var. Speed Cabinet Powermatic 1820
1140015 Yes   68 D1-4 1-5/8 Wheel Turret Var. Speed Cabinet Powermatic 1970

Model
Q.C. Gear Box
Center Distance
Bed Length
Spindle Nose
Spindle Bore
Tailstock/
Turret
Drive Belt
Stand
Comments


15" Swing


400 Auto.   68 A1-6" 1-27/32 Auto. Turret V-Belt Cabinet
410 Auto.   68 A1-6" 1-27/32 Auto. Turret V-Belt Cabinet Air Cross-Slide
450 Auto.   68 A1-6" 1-27/32 Auto. Turret V-Belt Cabinet "Electri-Matic"
Notes: "M-" = Metric Transposing Gears
  "-L" = L-00 Spindle Nose
"-H" = Flame Hardened Bed
"-V" = Variable Speed Drive
1941 - First Logan Lathe Built S/N 10101
1953 - Flat Belt Drive Discontinued
1955 - 2900 Series Replaced by 2500 Series
August 31, 1971 - Last Logan Lathe built in Chicago, S/N 87288

Page last updated 10 Dec 2008
© Copyright 2008  All rights reserved
